| Brand Name : | IWAVE |
| Model Number : | FDM-6800 |
| Certification : | CE, MIC |
| Price : | Negotiable |
| Payment Terms : | L/C,D/P,T/T |
| Supply Ability : | 50000/month |
| Delivery Time : | 5-8work days |

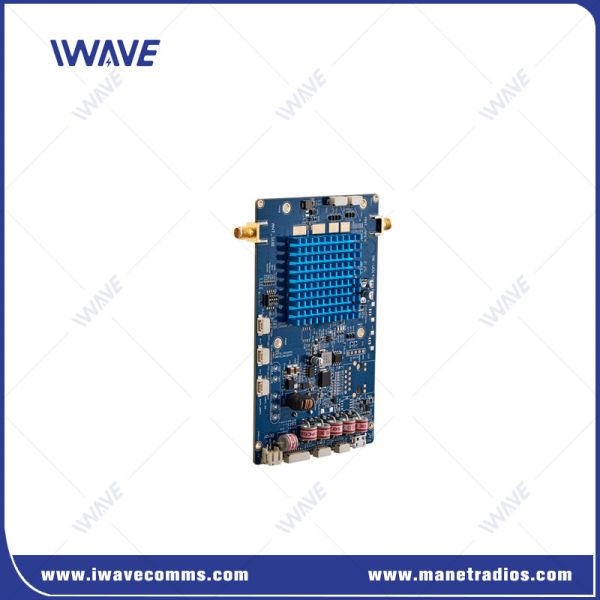

Point To Multipoint Wireless Communication System
Introduction
FDM-6680 is a wireless transmission product designed by IWAVE based on mature SOC chipset, which supports point to point and point to multi-point. 1 maseter node supports up to 64 sub-nodes to shares 80Mbps-100Mbps bandwidth for video and data transmitting.
FDM-6680 is designed based on TD-LTE wireless communication standard, OFDM and MIMO technologies. It doesn't rely on any carrier's base station.
Supports Ethernet and full duplex TTL data transmission. And the control data transmission is higher priority than network signal.
It adopts the Automatic frequency hopping technology for anti-interference greatly reduce system power consumption and size of the module.
Features
Long LOS Distance Transmission 20km
500m-3km(NLOS ground to ground)
Support High Speed Moving: build a stable link under a speed 300km/h
High Throughput: 80Mbps-100Mbps for uplink and downlink at same time
Power Self-adaptive: According to the channel conditions, adaptively adjust the transmitting and receiving power to reduce power consumption and network interference.
Application
● Mini UAS
● Drone UAS
● UGV
● Ethernet Wireless Extension
● Wireless Telemetry
● NLOS Wireless Video Transmitting
● Wireless Control Systems
Specification
| Technology | Wireless based on TD-LTE Technology Standard |
| Encryption | ZUC/SNOW3G/AES(128) Optional Layer-2 |
| Data Rate | Up to 100Mbps(Uplink and Downlink) |
| Communication Range | Air to ground 20km NLOS Ground to ground 1-3km |
| Node | 64node |
| MIMO | 2x2 MIMO |
| RF Power | 23dBm±2 (2w, 5w or 10w on request) |
| Latency | End to end≤5ms-15ms |
| Modulation | Adaptive QPSK, 16QAM, 64QAM |
| Anti-Jamming | FHSS(Frequency Hop Spread Spectrum) |
| Bandwidth | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz/40Mhz |
| Power Consumption | 5watts |
| Power Input | DC5-32V |
| Dimension | 72*60*10mm |
| Weight | 33g |
| Dual Band Frequency | 1.4G: 1420Mhz-1530MHz |
| 600Mhz: 566Mhz-678Mhz | |
| RF | 2 x IPX |
| LAN Port | 3x Ethernet Port |
| Comuart | 2xCOMUART |
|
|
